SUSPENSION MOUNTING COMPONENTS

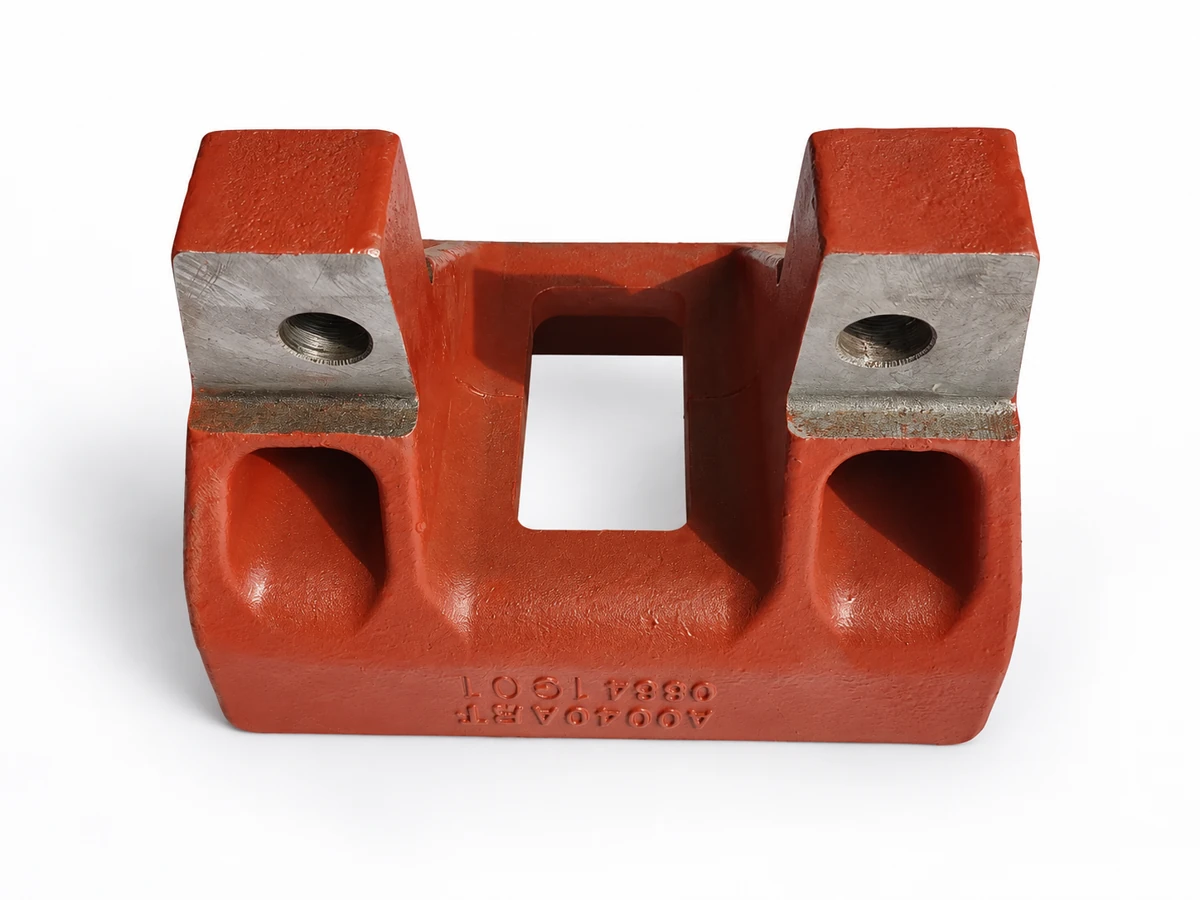

Upper and lower cast steel torque rod brackets
Upper and lower torque rod brackets are part of Wontide’s axle and mechanical suspension experience. Our catalog also includes a V-rod bracket and a combined upper torque rod and brake chamber bracket. These examples show different drawing-defined bracket arrangements. We review the casting, heat treatment, machining and inspection scope against your own part requirements.
TECHNICAL REVIEW
What matters for this component
Part versions
Identify left/right or upper/lower versions separately, and show which features and quantities differ between drawings.
Critical characteristics
Mark features requiring additional inspection and include any customer-specific acceptance or documentation instructions.
Coating and assembly scope
State coating coverage, protected surfaces and whether bushes or other components form part of the requested supply.
COMPONENT IDENTIFICATION
Confirm the part and supply scope
| Drawing detail | What to confirm |
|---|---|
| Upper or lower torque rod bracket | Provide a separate drawing number, revision and quantity for each version. Identify the assembly position and its mounting interfaces. |

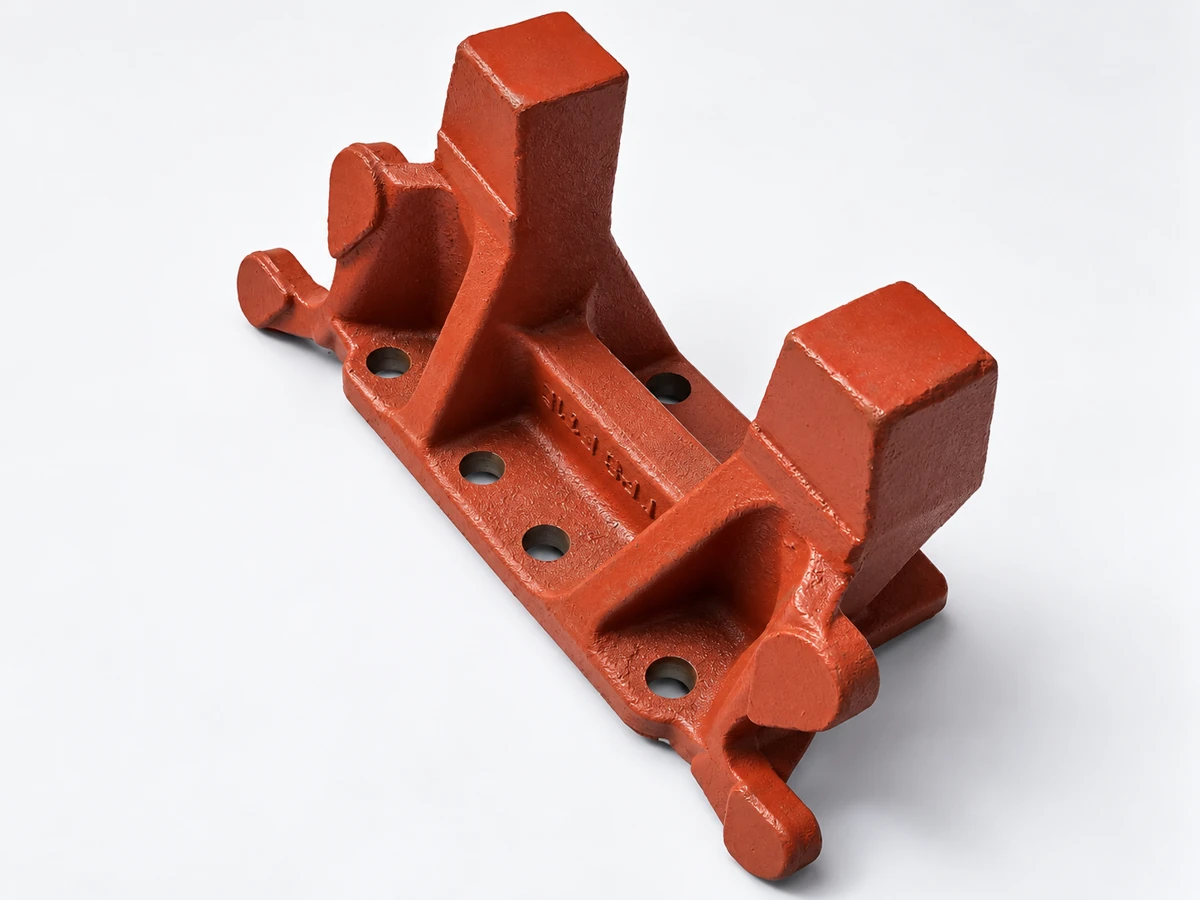

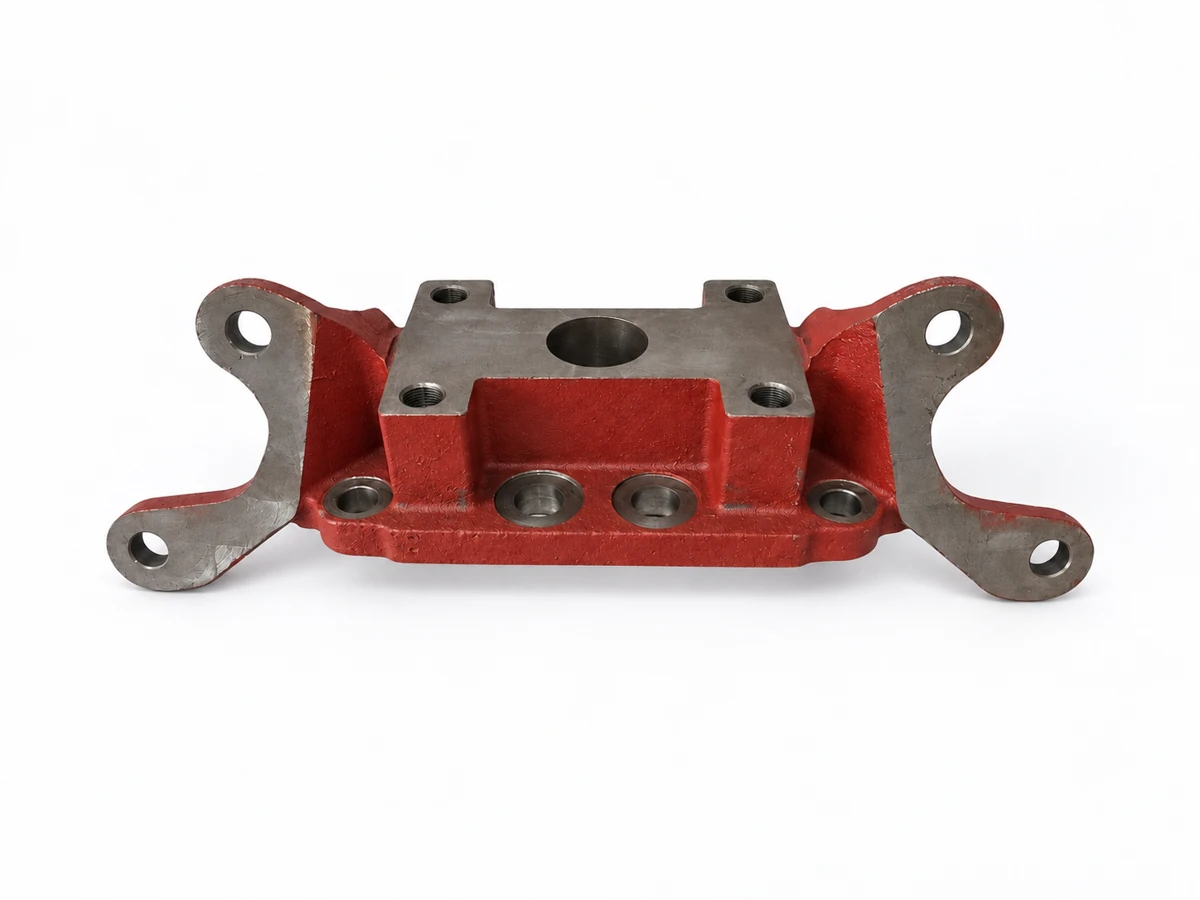

| V-rod or combined bracket | State whether the enquiry is for a V-rod bracket or a combined upper torque rod and brake chamber bracket, and include the complete drawing for that arrangement. |
| Bores and mounting faces | Mark the datums, fits and geometric relationships between bores, faces and the hole pattern that control assembly. |
| Cast blank or machined component | Identify which features are supplied as cast, which are machined and any operations left for later. Agree the inspection requirements for the selected delivery condition. |
Names identify representative component families. The approved drawing defines the interfaces and requirements for your part.
FROM OUR COMPONENT CATALOG
Representative components
Examples illustrate drawing-based manufacturing. Material, dimensions and inspection requirements are defined for the individual project. Photographs have been edited for surface and background cleanup and lighting.
FROM CASTING TO DELIVERY
Agree the manufacturing route.
We connect in-house casting, heat treatment and machining at our Laizhou manufacturing base. Define the delivery condition, controlled features and acceptance documents before production.
Explore our manufacturing and inspection capabilities- Drawing & material reviewRevision, material standard, quantities and delivery condition.
- Casting & heat treatmentTooling and treatment requirements agreed for the component.
- Machining & inspectionFeatures, checks and documentation follow the approved specification.
BUYER QUESTIONS
Before you send your drawing
Are the upper and lower brackets interchangeable?
Each bracket is manufactured to its own approved drawing. Please identify the assembly position and drawing revision; similar appearance does not establish interchangeability.
Can you review a combined torque rod and brake chamber bracket?
A combined bracket is included in our representative catalog. Send the complete drawing so we can review the casting geometry, interfaces, machining and inspection requirements for your version.
RELATED COMPONENTS
Explore another product family
AXLE & MECHANICAL SUSPENSION
Leaf spring seats
For buyers sourcing a drawing-defined spring seat, the technical review begins with the axle interface, spring contact geometry and required delivery condition. The photographed component is a representative example; a new project follows its own approved drawing.
View manufacturing requirements
SPRING CONTACT & CLAMPING COMPONENTS
Spring plates & pads
A useful enquiry distinguishes the function and interfaces of each plate or pad. The product name alone does not define the contact profile, mounting features, material condition or finish needed for a particular suspension assembly.
View manufacturing requirementsSTART WITH YOUR DRAWING
Let’s review your part.
Send the current drawing revision, material specification, quantities and inspection requirements. We will review the manufacturing scope before confirming price, tooling and production timing.
